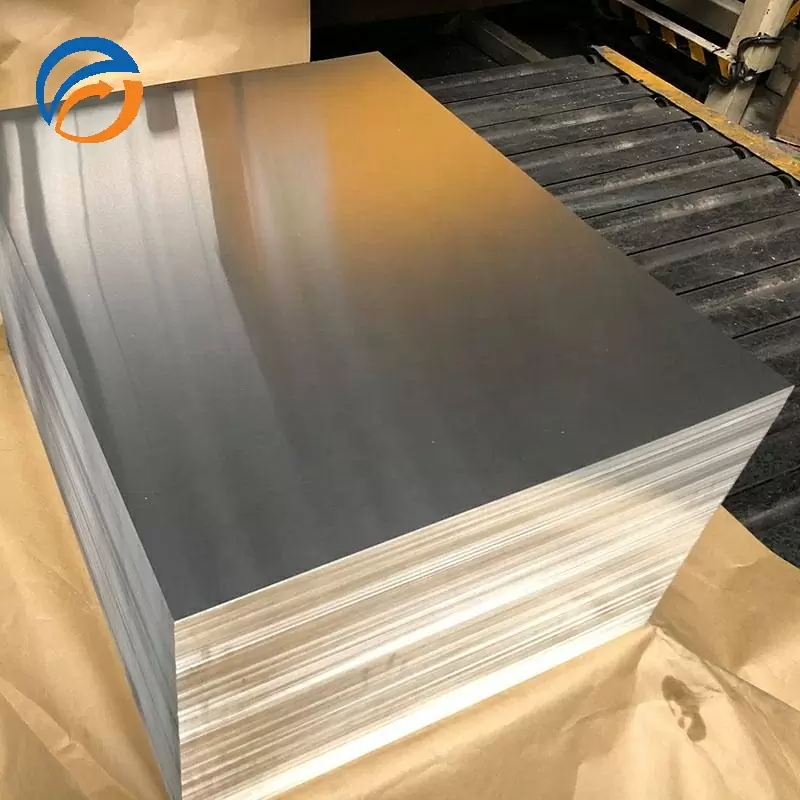

5052 Aluminum Plate
Features:
Alloy: 5052
Temper: O/H22/H32/H34/H36/H38
Thickness: 0.5mm to 120mm
Size: 1220 x 2440mm; 1250 x 2500mm; 1500 x 3000mm; 1524 x 3048mm; 2000 x 4000mm;
Max width: 2600mm; Max length: 12.5 Meter;
Surface: mill finish surface, bright, polished surface, with blue PVC films or paper-interleaved;
Mainly market: Europe, India, Iran, Pakistan, Thailand, Mexico, USA and so on.
It is widely used for ship engine bases, ship decks, ship sides, bottom outer plates, etc., covering the hulls of yachts and cruise ships, etc.
Description
5052-H32 Aluminum Sheet Introduction
Aluminum sheet 5052 is always called Marine grade aluminum sheet. Because it has a very good quality of corrosion resistance, and very good performance of welding, so many customers use this alloy for ship building, like 5052 H32 is always used for small boat building.
Aluminum Sheet 5052 Quality Data Sheet/Characteristics:
| ALLOY | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | A1 | A1 | |
| 5052 | 0.25 | 0.4 | 0.4 | 0.1 | 2.2~2.8 | 0.15~0.35 | — | 0.1 | — | —- | — | Remainder | Remainder |
Aluminum Sheet 5052 H32 H34 Mechanical Properties Standard
| Temper | Anti –tensile strength N/m㎡ | Elongation rate（%） | surface | Hardness |
| 5052 H32 | 230Mpa | 12 | Mill finish | Above 60HB |
| 5052 H34 | 260Mpa | 10 | Mill finish | Above 68HB |
How to Pack and ship the Aluminum Sheet 5052?
1. Packing: Strong wooden pallet, with blue PVC films or paper-interleaved,
2. Max Gross weight skid 2500KGS;
3. For 1 x 20FCL can load 20 to 25 Tons max;
4. Surface: mill finish with blue PE films to protect the surface.
