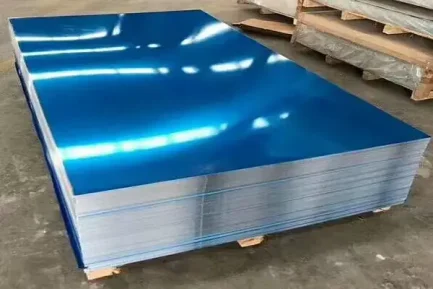

5005 Aluminum Plate
Aluminum Sheet Alloy: 5005
Temper: O, H111, H32, H34, H36, H38, H112
Thickness: 0.2mm – 6mm, 6mm – 200mm; (DC Material)
Thickness tolerance: +/-0.02mm, Width & Length tolerance: -0 / +2mm. Diagonal line (+/- 2mm)
Surface: mill finish surface, bright, polished surface, with blue PVC films or paper-interleaved;
Width: 300mm-2600mm; large size aluminum sheet max width 2600mm, max length 11meter;
Description
luminum Plate 5005 Quality Data Sheet/Characteristics/Chemistry composition:
| Alloy No. | Element | Si | Fe | Cu | Mn | Mg | Cr | Ti | Zn | Al |
| 5005 | Actual Value | 0.1 | 0.38 | 0.023 | 0.075 | 0.89 | 0.045 | 0.016 | 0.008 | Remainder |
Aluminum Sheet 5005 H34 Mechanical Properties Standard
| Tensile Strength (Mpa) | Elongation % | Yield Strength（Mpa） | Surface |
| 155 | 6 | – | Qualified |
How to Pack and ship the aluminum plate 5005?
1. Packing: Strong wooden pallet, with blue PVC films or paper-interleaved,
2. Max Gross weight skid 2500KGS;
3. For 1 x 20FCL can load 20 to 25 Tons max;
4. Surface: mill finish with blue PE films to protect the surface.
